How to Debug CAD Scripts with Visual LISP IDE

Debugging CAD scripts can be challenging, but Visual LISP IDE (VLIDE) simplifies the process with tools like breakpoints, variable monitoring, and error tracing. Here’s how it helps:

• Key Features: Syntax highlighting, auto-indentation, real-time testing in the Console Window, error logging in the Trace Window, and direct error navigation in the Build Output Window.
• Debugging Tools: Use breakpoints (F9) to pause code, the Watch Window to track variable changes, and the Trace Stack to analyze function calls.
• Common Issues: Solve problems like mismatched coordinates, memory leaks, and variable scope conflicts using VLIDE’s advanced debugging options.
• Setup Tips: Enable “Break on Error”, organize your workspace with key windows, and reset the environment after debugging.

Quick Tip: Start debugging by setting breakpoints at critical code points and using the Watch Window to monitor variables in real time.

Mastering these tools ensures smoother workflows, fewer errors, and efficient CAD scripting. Read on for step-by-step guidance on using VLIDE effectively.

Visual LISP for AutoCAD Tutorial

Visual LISP IDE Debugging Tools and Features

Visual LISP IDE comes packed with a range of debugging tools designed to make error detection and correction in CAD scripts more efficient. These tools provide a clear view of how your code behaves, helping you identify and fix issues with ease.

Main Debugging Features

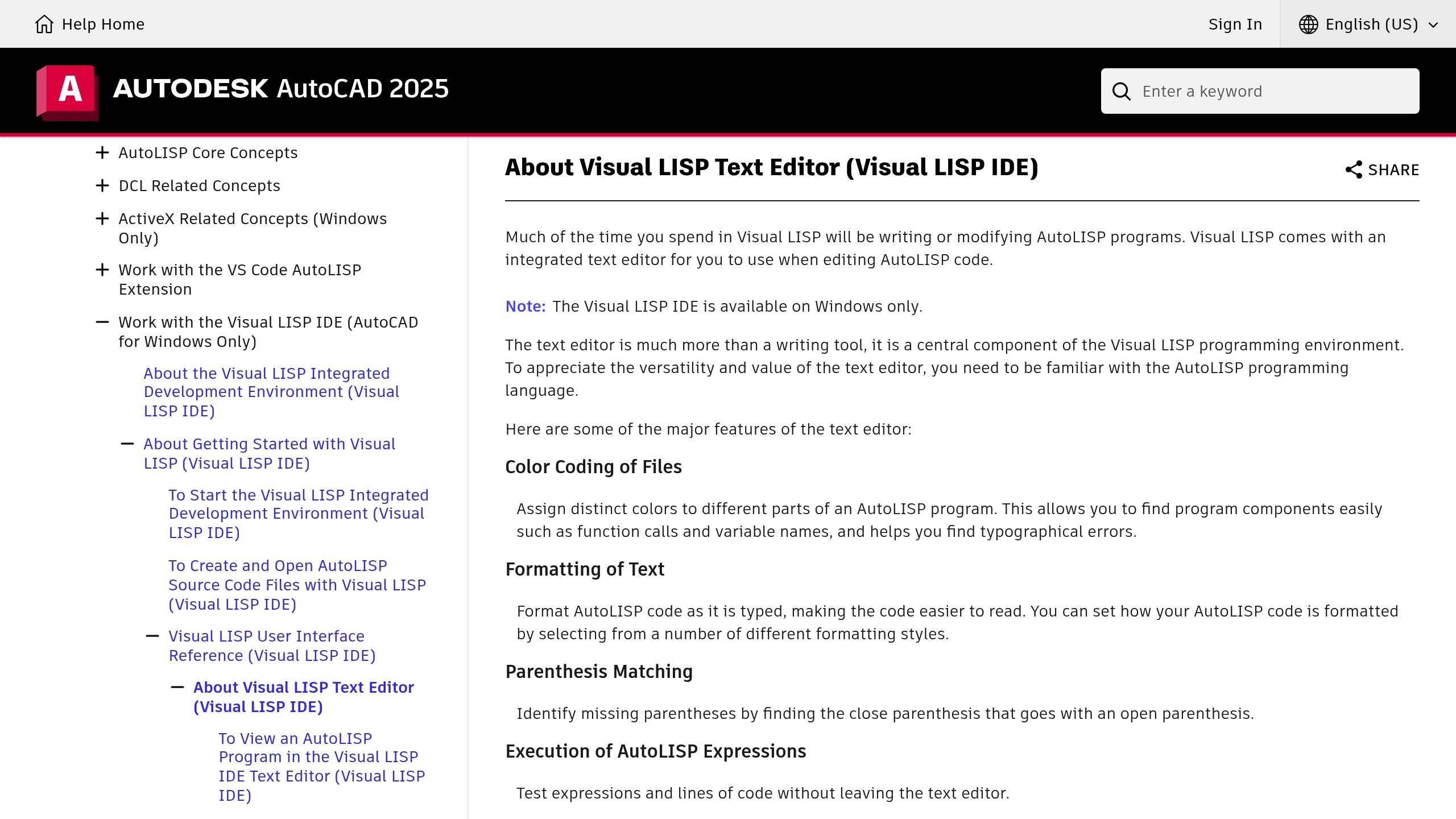

The Editor Window serves as the central hub for writing and editing AutoLISP code. It includes helpful features like syntax highlighting and auto-indentation, which make your code easier to read and organize. By visually distinguishing system variables, user-defined variables, strings, and integers, it helps you quickly catch typos or misplaced elements.

The Console Window is where you can test AutoLISP expressions in real time. It also keeps a history of commands, making it easy to revisit previous tests. While debugging, you can even modify variable values directly within the console.

The Trace Window is your go-to for detailed execution logs. It records all debugging information into a file, giving you a step-by-step breakdown of how your code runs. To start logging, right-click the Trace Window and choose “Toggle Trace Log…”. This feature is especially helpful for analyzing complex scripts or sharing debugging details with team members.

The Build Output Window highlights syntax errors or other issues detected by the code checker. A double-click on any error message takes you straight to the problematic line in the editor, saving you time and effort.

On top of these core features, the IDE includes advanced tools for even greater control during debugging.

Specialized Debugging Tools

Breakpoints are a vital tool for debugging. Press F9 to set a breakpoint, which pauses your code at specific points. This allows you to inspect variables and step through your script one line at a time. The “Break on Error” feature halts execution at the exact spot where an error occurs, while “Last Break Source” (Ctrl+F9) helps you quickly locate the failure point.

“As soon as we started programming, we found out to our surprise that it wasn’t as easy to get programs right as we had thought. Debugging had to be discovered. I can remember the exact instant when I realized that a large part of my life from then on was going to be spent in finding mistakes in my own programs.” – Sir Maurice Wilkes

The Watch Window is another powerful tool. It allows you to monitor variable values in real time. You can double-click a variable to view its data type and current value, or add variables to the watch list using Debug > Add Watch. This makes it easy to track how values change as your code runs.

The Error Trace tool helps you pinpoint exactly where things went wrong. When an error occurs, you can right-click the LISP statement just below the first error message and select “Call point source” to jump directly to the problematic code.

For instance, Lee Mac Programming shared an example where a script meant to calculate the total length of selected lines in AutoCAD failed due to an issue in a while loop condition. By using breakpoints and the Watch Window, developers discovered the index variable idx was exceeding the valid range of the selection set. Adjusting the condition from (<= idx ssl) to (< idx ssl) resolved the issue.

When used effectively, these debugging tools give you precise control over your scripts, helping you catch and fix issues early to keep your CAD workflows running smoothly.

Setting Up Your Debugging Environment

Making the most of debugging tools starts with having a well-organized and properly configured workspace. When you set up the Visual LISP IDE (VLIDE) thoughtfully, you can catch errors faster and work more efficiently.

Configuring Basic Settings

To get started, open the Visual LISP IDE from the AutoCAD command line by typing VLISP or VLIDE. Once inside, focus on enabling key debugging features that can streamline your workflow.

• Go to Debug » Break on Error and make sure it’s checked. This option automatically halts script execution at the exact point where an error occurs, saving you time hunting down issues.
• Use Ctrl+F9 or select “Last Break Source” to instantly jump to the error line. This feature gives you immediate insight into what went wrong.
• To reset your environment, use the Reset to Top Level command (Ctrl+R). This clears all breakpoints and resets the interpreter, allowing you to start fresh after making changes to your code.

With these settings in place, you’re ready to arrange your workspace for a smoother debugging experience.

Organizing Your Workspace

The Visual LISP IDE comes with standard editing tools like New, Open, Save, Cut, Copy, and Paste. How you arrange your workspace can significantly impact your productivity.

• Editor Window: Keep this at the center of your workspace. This is where you’ll spend most of your time writing and reviewing code. Features like syntax highlighting and auto-indentation make it easier to follow your code’s structure.
• Console Window: Position this where it’s easily accessible for real-time testing. The ability to view command history lets you quickly re-execute test expressions without retyping them.
• Watch Window: Open this via View » Watch Window or Ctrl+Shift+W and dock it somewhere visible. This window allows you to monitor variable changes as you step through your code, reducing the need to switch back and forth.
• Trace Window and Build Output Window: Arrange these so they catch your attention when new information appears, ensuring you don’t miss critical updates.

Keyboard shortcuts can also save you time. Beyond using F9 to toggle breakpoints and Ctrl+F9 to jump to the last break source, learn Ctrl+Shift+F9 to clear all breakpoints. Setting up shortcuts for your most-used commands will make your sessions faster and smoother.

Finally, once you’ve found a workspace layout that works for you, save it. The Visual LISP IDE will remember your arrangement, so you won’t have to set it up again next time. A consistent, organized setup reduces distractions and lets you focus entirely on debugging.

How to Debug CAD Scripts Step by Step

Once your workspace is set up, you can dive into debugging your CAD scripts. The Visual LISP IDE provides tools to control how your code runs, allowing you to pause at specific points and inspect what’s happening behind the scenes.

Setting and Using Breakpoints

Breakpoints are essential for controlling script execution. They let you pause the program at specific points, so you can check the state of variables and evaluate what’s happening at that moment.

To set a breakpoint, place your cursor to the left of the open parenthesis in the expression where you want the script to stop. Then, press F9 or right-click and choose Toggle Breakpoint from the menu. A visual marker will appear in the Visual LISP IDE, showing where the breakpoint is set.

Here are a few things to keep in mind about breakpoints:

• Breakpoints can only be set in the VLISP text editor. If the cursor placement is unclear, the IDE will prompt you to confirm the exact location.
• Use F9 to toggle (set or remove) breakpoints at your cursor position.
• To remove all breakpoints at once, use the Debug » Clear All Breakpoints command.
• Breakpoints are temporary – they disappear after you close the AutoLISP file. This ensures your script remains clean and free of leftover debugging markers.

For catching errors automatically, enable the Break on Error feature. This option creates a breakpoint at the exact point where your code fails, saving you time by pinpointing the issue directly.

Once your breakpoints are in place, you can start stepping through your code to analyze its behavior.

Stepping Through Code Execution

When your code hits a breakpoint, you have several options to move through it step by step. These commands give you precise control, helping you understand how each part of your script functions.

• Step Into (F8): Executes your code one line at a time. This is perfect for tracking down logic errors or examining how calculations unfold.
• Step Over (Shift+F8): Skips over functions you know are working correctly, letting you focus on areas of interest.
• Continue: Resumes execution from the current breakpoint, allowing the script to run normally until it hits the next breakpoint or finishes execution.

“By pausing the AutoLISP interpreter, we can take control of the flow of evaluation, starting & stopping the code when and where we like.” – Lee Mac Programming

For a more visual debugging experience, try the Animate feature. Activate it through Debug » Animate and use the Continue command (Ctrl+F8) to step through the code, expression by expression. This method is particularly helpful for observing loops or conditional statements at a manageable pace.

Advanced Debugging Methods and Error Analysis

Once you’ve gotten comfortable with breakpoints and step execution, it’s time to explore advanced techniques that can take your debugging to the next level. When basic tools fall short, the Visual LISP IDE offers powerful features to help you diagnose and prevent even the trickiest errors.

Reading the Trace Stack

Think of the Trace Stack window as your go-to detective tool for tracking down elusive bugs. This feature shows the complete hierarchy of function calls when your program hits a breakpoint or encounters an error, giving you a clear view of the path your code followed.

To access the Trace Stack, head to View » Trace Stack in the VLISP menu, or use the Trace toolbar button. Each entry in the trace stack represents a function call frame, laid out in the order the functions were called. This visual breakdown makes it easier to pinpoint exactly where things went wrong.

When an error pops up, the trace stack lets you see the sequence of function calls that led to the issue. Pay close attention to the data passed to each function – this is often where incorrect inputs sneak in. For example, if a geometry calculation fails, tracing the stack can reveal where invalid coordinates or null entities entered the mix.

This tool is especially useful when debugging nested functions or recursive operations. Instead of guessing which level of the function is causing the problem, you get a full picture of the call hierarchy and can inspect the data at every step. It’s a much faster and more effective approach than scattering print statements throughout your code. Once you’ve analyzed the call hierarchy, you can move on to advanced error management to make your scripts even more reliable.

Checking Data and Managing Errors

While debugging tools help you identify problems, proactive error management can prevent many issues from occurring in the first place. By adopting defensive programming practices, you can ensure your CAD scripts handle complex scenarios without crashing.

Error Handler Implementation is a cornerstone of reliable scripting. Redefining the *error* function allows you to restore system settings and manage predictable errors more effectively. As Lee Mac, a well-known AutoLISP programmer, explains:

“The main purpose of an error handler is to restore a user’s AutoCAD environment back to its original settings should something in a program go wrong.”

By customizing the *error* function, you can temporarily save and restore system variables. Use conditional logic to suppress expected error messages, such as “Function cancelled”, to mimic standard AutoCAD command behavior. At the end of your program, reset the *error* symbol with (setq *error* nil) to restore the default error handler.

Data Validation Techniques are another key element in avoiding runtime errors. The vl-catch-all-apply function is particularly helpful for handling risky operations. Instead of letting your script crash, this function catches errors and returns an error object, allowing you to handle the issue gracefully.

For geometric operations, normalize your data and use small epsilon thresholds for floating-point comparisons to avoid precision problems. Always confirm that points are in the correct coordinate system before performing calculations. Misaligned coordinate systems are a common source of errors in CAD scripts.

When working with angles, make sure they fall within the [0, 2π] range. Fix any close-to-zero negative values that could lead to unexpected behavior. Additionally, use the runtimeId API to validate database pointers and ensure they’re unique, which helps prevent crashes caused by invalid entity references.

Variable Watching is an invaluable tool for catching data corruption during debugging sessions. The VLIDE lets you monitor variables in real time, so you can see how their values change during complex calculations.

Set up watches for critical variables before running your script, especially those involved in geometric computations or entity manipulations. If a variable’s value doesn’t match your expectations, you’ll know exactly where things went off track, allowing you to adjust your logic right away.

“When we get different results from those expected or the program halts because of an error, discovering what went wrong can be very difficult. VLISP offers a series of tools that can assist in the debugging process in order to find and solve any problems our programs may present.” – Reinaldo N. Togores, Architect, PhD in Civil Engineering

Common CAD Script Errors and How to Fix Them

This section dives into common CAD script issues and practical ways to resolve them, focusing on tools available in Visual LISP IDE (VLIDE). Even seasoned CAD programmers encounter recurring challenges, but understanding these pitfalls can save time and improve script reliability.

Geometry and Coordinate Problems

One frequent issue in CAD scripting is mismatched coordinate systems. If a script expects coordinates in one system but receives them in another, calculations can go wrong, resulting in misplaced geometry or no geometry at all.

To address this, use the Watch Window in VLIDE to monitor coordinate values during transformations. This tool helps catch discrepancies early. Another common problem involves entity selection errors. Scripts may crash if they attempt to manipulate entities that don’t exist, have been deleted, or aren’t the right type. The Break on Error feature in VLIDE is particularly helpful here – it pauses execution exactly where the invalid reference occurs.

A great example of debugging in action comes from Lee Mac Programming. In a tutorial, a script designed to calculate the total length of selected lines failed due to an off-by-one error in the loop condition. This caused the script to access a non-existent entity and crash. By using VLIDE’s debugging tools, the issue was resolved by examining variable states during each loop iteration.

Floating-point precision errors are another headache. Small rounding issues can add up, causing coordinates to appear valid but fail in subsequent operations. The Animate function in VLIDE lets you step through calculations line by line, making it easier to spot how precision changes impact results.

When debugging coordinate-related problems, always check for null or invalid point data. Before creating geometry, set breakpoints to confirm that all coordinate values are valid numbers – not nil or strings. VLIDE’s variable inspection tools are invaluable for identifying these data type mismatches.

Distance and angle calculations can also fail under specific conditions. For example, coincident points or invalid geometric relationships can cause errors. Before calculating distances, ensure the start and end points are distinct. Similarly, for angle calculations, verify that vectors have a non-zero length and that the geometric setup supports the intended operation.

Beyond geometry, CAD scripts often run into issues with memory and variable management.

Memory and Variable Management Issues

Variable scope conflicts are a common source of subtle, hard-to-diagnose bugs. Local variables might unintentionally override global ones, or functions might alter variables they shouldn’t. VLIDE’s variable monitoring tools, combined with the Trace Stack feature, help you inspect function call hierarchies to pinpoint where these conflicts arise.

Memory leaks can also cause scripts to degrade in performance or crash during long runs. While AutoLISP includes automatic garbage collection, some operations require manual cleanup. For example, always release selection sets using (sssetfirst nil nil) when you’re done with them. During long-running scripts, monitor memory usage by setting breakpoints at intervals to catch potential leaks.

Persistent error states can linger between script runs, leading to unexpected behavior. Use Reset to Top Level (Ctrl+R) to clear modified system states and Clear all Break Points (Ctrl+Shift+F9) to remove debugging artifacts before retesting your script.

Performance issues often stem from inefficient loops or repeated database queries. To identify bottlenecks, use breakpoints within loops to observe how execution time increases with each iteration. This can help you pinpoint operations that are taking too long and refine your algorithms for better efficiency.

Summary and Next Steps

Getting a handle on Visual LISP IDE debugging is a game-changer for script development and troubleshooting. This guide has walked you through essential tools and techniques like setting breakpoints, monitoring variables, analyzing trace stacks, and tackling common errors. These skills lay a solid foundation for effective debugging.

Strong debugging abilities don’t just improve your workflow – they directly impact project outcomes. On average, technical issues cost companies $4,072 annually per person. By mastering debugging, you’re not only saving time and money but also ensuring smoother project execution. Whether it’s fixing coordinate system mismatches, resolving variable scope conflicts, or catching memory leaks before they cause trouble, your expertise helps keep projects on track and minimizes downtime.

Building Your CAD Debugging Skills

Now that you’ve got the basics, it’s time to sharpen your skills through consistent practice and focused learning. Start small – use the Break on Error feature during your daily scripting tasks to catch issues as they arise. Make the Watch Window a regular part of your workflow to track variable changes in real time. And don’t forget to reset the VLIDE environment after debugging to clear any lingering breakpoints or watches.

Adopt a systematic approach to debugging. When a script doesn’t behave as expected, use breakpoints to pause execution and closely examine variable states at key moments. This step-by-step method not only helps you pinpoint what went wrong but also deepens your understanding of why it happened, leading to stronger, more reliable scripts.

Debugging isn’t just about fixing errors – it’s also about refining and optimizing your code. Learning to trace through complex logic and animate code execution allows you to boost script performance and write more efficient, streamlined code. These skills become even more crucial as your CAD automation projects grow in complexity.
