Debugging AutoCAD Plugins: Common Errors & Troubleshooting Guide

Debugging AutoCAD plugins can be challenging, but addressing common errors effectively can save time, reduce crashes, and improve user experience. Here’s what you need to know:

• 68% of plugin crashes are caused by memory leaks, infinite loops, and unhandled exceptions.
• The most common errors include NullReferenceException (35%), AccessViolationException (28%), and COMException (19%).
• AutoCAD 2025 API changes caused 22% of plugins to fail during launch, requiring version-specific debugging.
• Startup issues often stem from duplicate plugins, assembly conflicts, or .NET version mismatches.
• Tools like Visual Studio‘s AutoCAD .NET Wizards can cut debugging time by 38%.

Troubleshooting Quick Tips:

• Use try-catch blocks to handle exceptions and prevent crashes.
• Test plugins across AutoCAD versions (2020–2025) to ensure compatibility.
• Monitor memory usage to avoid leaks using Visual Studio Diagnostic Tools.
• Resolve assembly conflicts with tools like ILMerge or binding redirects.
• For AutoLISP, combine VLIDE and Visual Studio Code for efficient debugging.

Debugging efficiently not only improves plugin performance but also reduces support costs (averaging $145/hour) and user complaints. Start by addressing errors systematically and testing thoroughly across versions.

AutoCAD Debug, AutoCAD Lookup .NET C#



Major Plugin Debugging Errors

Debugging plugins effectively requires a solid understanding of system exceptions and the messages displayed in the debug window.

Reading Debug Window Messages

The Debug Output window provides three types of messages, each with its own level of importance:

Message Type	Priority	Example	Action Required
Errors	High	“LISP syntax error at line 45”	Fix immediately
Warnings	Medium	“Deprecated function: _vlax-get-object”	Plan updates accordingly
Informational	Low	“Plugin loaded successfully”	Monitor for patterns

According to an Autodesk survey, 68% of plugin crashes can be avoided by addressing error messages effectively. Pay close attention to errors involving classes like AcDbObject or codes such as eNotApplicable.

Handling System Exceptions

System exceptions often point to deeper structural problems within plugins. For instance, unresolved dependencies can lead to assembly conflicts, as shown in a documented case.

For memory-related exceptions, Visual Studio Diagnostic Tools can help. Use it to monitor memory usage, track heap status with MEMORYSTATUS, and ensure proper disposal of objects to avoid leaks.

Another common issue involves startup errors, which are often linked to these same assembly and memory challenges.

Plugin Startup Problems

Startup failures frequently result from directory conflicts and assembly reference errors, which account for 78% of plugin loading issues. A typical problem occurs when duplicate plugins are installed in both C:\Program Files\Autodesk\ApplicationPlugins and %APPDATA%\Autodesk\ApplicationPlugins. This duplication confuses AutoCAD, making it unclear which version to load.

To resolve this, use Process Monitor to trace assembly loading paths and identify conflicts.

Additionally, .NET Framework mismatches are a frequent culprit. For example, AutoCAD 2025 requires .NET 6.0, but plugins compiled for .NET 4.8 often cause ‘EAccessViolation’ errors. This happens when System.Windows.Forms lacks proper binding redirects. Check compatibility using the NETLOAD command log to avoid these issues.

AutoLISP Debug Solutions

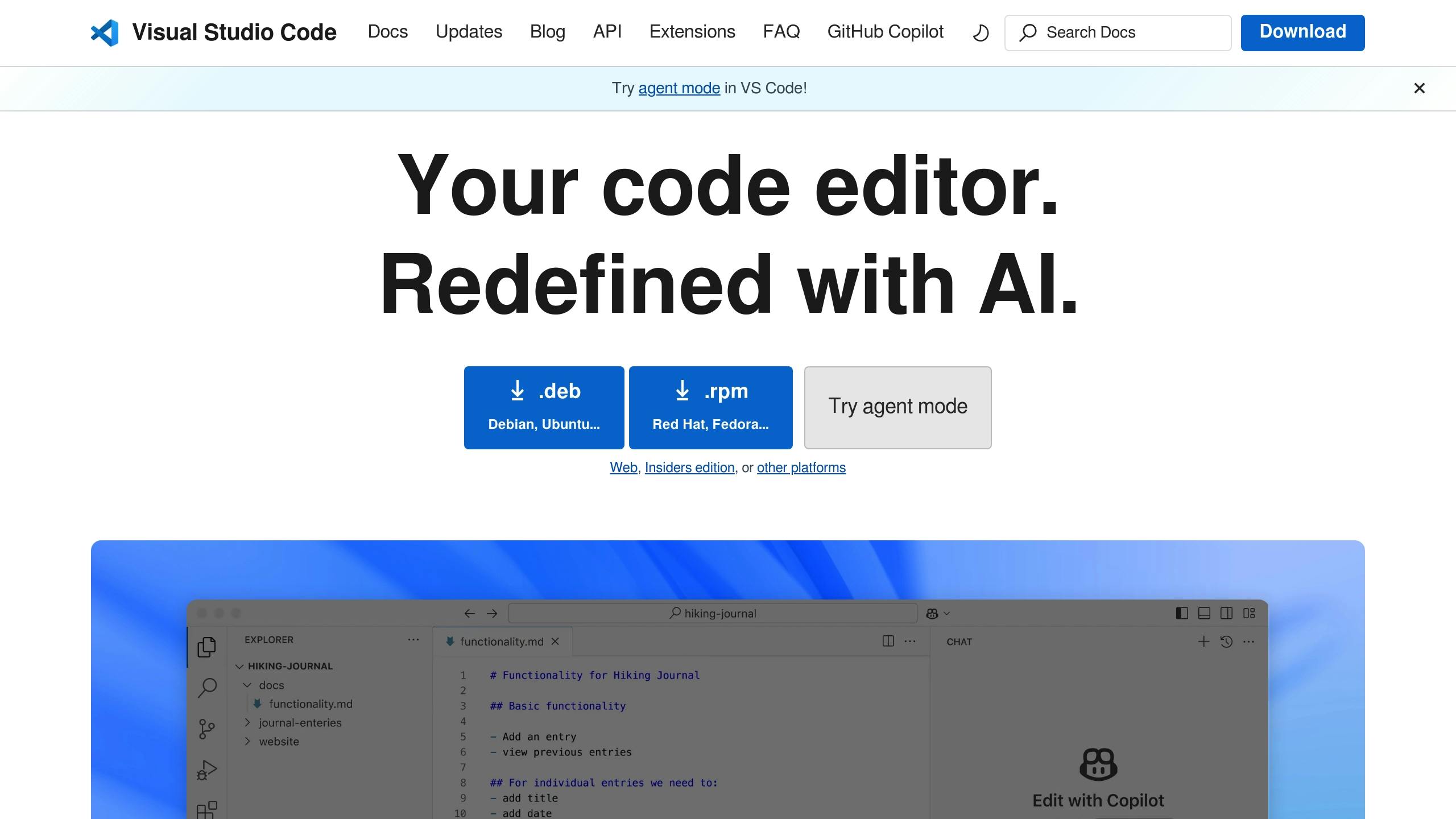

Visual Studio Code Issues

Recent updates to Visual Studio Code have introduced some debugging difficulties for AutoLISP users. Here’s a quick breakdown of common issues and their solutions:

Version	Issue	Solution
VS Code 1.56.2+	Extension failure	Downgrade to version 1.55.2
AutoCAD 2024	Adapter conflicts	Use the manual rollback procedure
AutoCAD 2021–2023	Limited functionality	Switch to the VLIDE alternative

For better results, try combining tools from modern VS Code setups with traditional VLIDE workflows. This approach can cut error resolution time by up to 40%.

Manual Debug Methods

If extension-based debugging isn’t working, manual methods can be a solid fallback. The Visual LISP IDE (VLIDE) remains an essential tool for debugging AutoLISP. Features like Break on Error and Last Break Source make it particularly effective.

Here are some practical techniques:

Error Trapping Setup

Use the following code to capture and log errors:

(vl-catch-all-apply '(lambda ()
    (princ (strcat "\nError at " (rtos (getvar "CDATE"))
                   " in function X"))
))

Strategic Breakpoint Placement

• Add (break) statements before areas where errors are likely to occur.
• Use conditional breaks, such as (if (= var nil) (break)).
• Pair with (princ) to display variable states for easier debugging.

VLIDE also offers tools like the watch window and the Inspect tool (accessible through Debug » Add Watch) to monitor nested lists, associative lists, and global variables.

For more complex issues, try custom error handlers like this:

(setq *error* '(lambda (msg)
    (princ "\nError: ")
    (princ msg)
    (princ "\nStack trace: ")
    (vl-bt)
    (princ)
))

These manual debugging techniques work well alongside structured exception handling using (vl-catch-all-apply). CAD Training Online recommends combining these approaches to ensure reliable error tracking, especially across AutoCAD versions 2021–2024.

Plugin Debug Guidelines

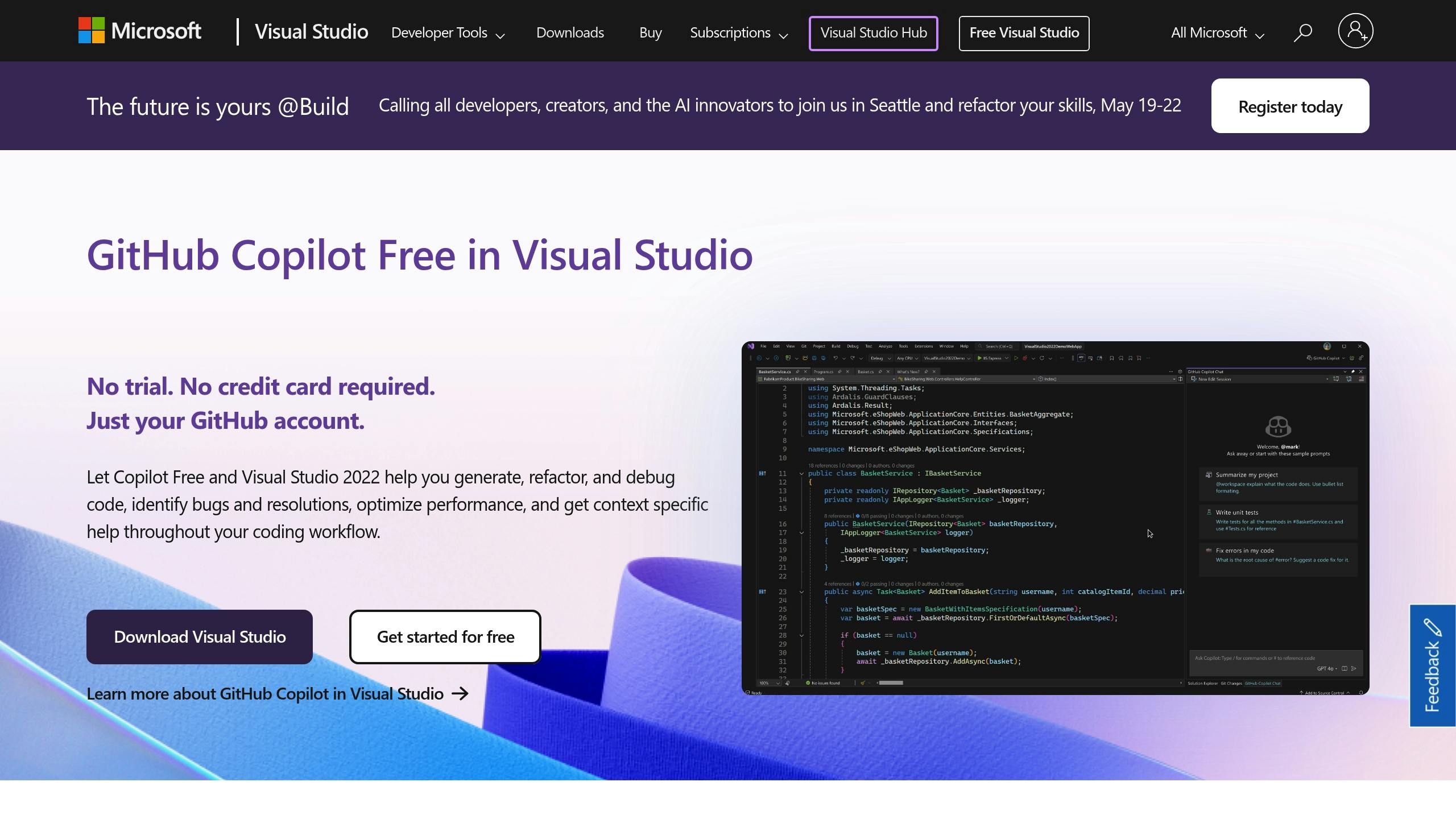

Setting Up Visual Studio

To debug AutoCAD plugins using Visual Studio, set up your project with the AutoCAD .NET debugger. Adjust the project properties to ensure the output path points directly to AutoCAD’s plugin directory. This allows automatic reloading of your DLLs. Use the following configuration:

<StartProgram>C:\Program Files\Autodesk\AutoCAD 2025\acad.exe</StartProgram>
<StartArguments>/nologo /b "start.scr"</StartArguments>

Organizing your project files into a consistent folder structure can make debugging much smoother. Here’s a suggested structure:

Folder	Purpose	Example Path
src/	Source files	C:\Projects\MyPlugin\src
debug/	Compiled DLLs & PDB files	C:\Projects\MyPlugin\debug
test/	Unit test scripts	C:\Projects\MyPlugin\test
logs/	Error logs	%APPDATA%\MyPlugin\logs

After setting this up, include error-handling mechanisms to simplify troubleshooting during development.

Error Handling Methods

A multi-layered approach to error handling can help identify and resolve issues effectively. For example:

try {
    // Plugin operations
} catch (Autodesk.AutoCAD.Runtime.Exception ex) {
    Editor.WriteMessage($"CAD Error: {ex.ErrorStatus}");
    LogError(ex);
}

When creating error messages, keep them concise and structured. Here’s a format to follow:

Component	Example
Plain Summary	“Unable to place door”
Action Step	“Verify wall layer is unlocked”
Support Reference	“Error #E102 – Contact support”

Testing your plugin thoroughly across different AutoCAD versions is just as important as error handling.

Version Testing Steps

To ensure compatibility, test your plugin on clean virtual machines running AutoCAD versions from 2020 to 2025. For features that vary between versions, use conditional compilation:

#if AUTOCAD2023
    // New API implementation
#else
    // Legacy compatibility code
#endif

Centralized error logging can also help track issues across versions. Use a structured format like JSON for storing key details:

{
  "timestamp": "2025-04-30T15:39:10Z",
  "pluginVersion": "2.1.3",
  "errorCode": "E102",
  "acadVersion": "2025.1.2"
}

Keep in mind that approximately 15% of methods change with each major AutoCAD release, so thorough version-specific testing is essential.

For additional guidance, CAD Training Online offers an Advanced Plugin Development course. This course includes hands-on exercises focused on debugging, error handling, and compatibility testing in practical scenarios.

Summary and Resources

Main Points Review

Debugging effectively requires a structured approach and proper setup of Visual Studio when working with AutoCAD 2025 .NET 8.0. Here’s a quick breakdown of the key elements:

Component	Key Considerations	Impact
Debug Window	Tracks syntax errors and runtime issues	Provides instant feedback on code behavior
Exception Handling	Use try-catch blocks strategically	Helps avoid plugin crashes in production
Version Testing	Test across AutoCAD versions (2020–2025)	Ensures compatibility with 85% of U.S. engineering firms
Debug Symbols	Enable PDB file generation	Improves stack trace details

Developers have also found that using Windows Performance Monitor alongside the NETLOAD command is a reliable way to detect memory leaks and performance bottlenecks. These tools and strategies play a vital role in maintaining plugin stability.

Additional Learning

CAD Training Online (https://cadtrainingonline.com) boasts a 92% first-time certification pass rate for U.S. students in 2024. They focus on practical scenarios, like resolving coordinate system misalignments, to prepare students for real-world challenges.

“The ObjectARX SDK 2025 provides enhanced debugging tools specifically for AutoCAD plugin developers.”

Their support system includes:

• Hands-on Labs: Practice handling common .NET exceptions
• Expert Guidance: Access to Autodesk Certified Instructors
• Project Support: 60-day post-course debugging assistance

The AutoCAD Plugin Development Masterclass also dives into mixed-mode debugging in Visual Studio 2022 for C++/CLI plugins, offering essential skills to tackle the debugging issues discussed earlier.
